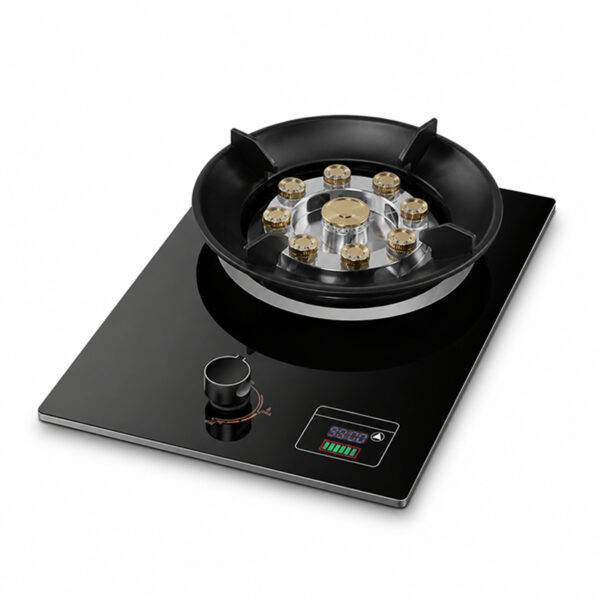

A6-7 Built-In Gas Hob
Single-burner built-in gas hob with a tempered-glass panel and pulse ignition.
Specifications
Installation type
Built-in
Gas burners
1
Panel material
Tempered glass
Product size
430 × 330 × 155 mm
Cut-out size
380 × 270 mm
Ignition
Pulse ignition
Natural gas — catalog heat load
5.2 kW
LPG — catalog heat load
5.0 kW
Heat-load figures follow the catalog gas-version labels. Confirm pressure, burner configuration and connections; do not assume per-burner or total heat load.
Glass panel size
430 × 330 × 6 mm
Power supply
DC 3 V
Package size
460 × 355 × 200 mm
Flame protection
Flame-failure protection
Safety lock
Child lock
Timing
Timing control
Dimensions, supply and functions refer to the recorded model configuration; confirm the selected order configuration.
Installation and Order Support
Request the model-specific installation drawing and gas-version specifications. Check product and cut-out dimensions separately, and confirm gas pressure, burner configuration and connection requirements before ordering.
Request a Quote
Share your target market, gas type, expected quantity and branding or packaging requirements.
Sample and trial-order arrangements are confirmed for the selected configuration and project.
